In the realm of water treatment, filters are crucial devices that ensure the safety and purity of water. Whether it is the treatment of wastewater in industrial production or the purification of water in municipal water supply systems, filters play an indispensable role. Quartz sand filters and fiber filters, as two common types of water treatment equipment, each have unique performance characteristics and a wide range of applications. Quartz sand filters are widely used in coarse filtration scenarios due to their mature technology and low cost, while fiber filters have made a name for themselves in fine filtration with their high-efficiency filtration performance and excellent ability to remove tiny particles. This article will delve into the characteristics and differences of these two types of filters in terms of filtration efficiency, flow rate, maintenance cost, and application scenarios. Through a detailed comparative analysis, we aim to help you better understand their performance differences and choose the most suitable water treatment equipment according to your actual needs, ensuring that your water treatment system operates efficiently, stably, and economically.

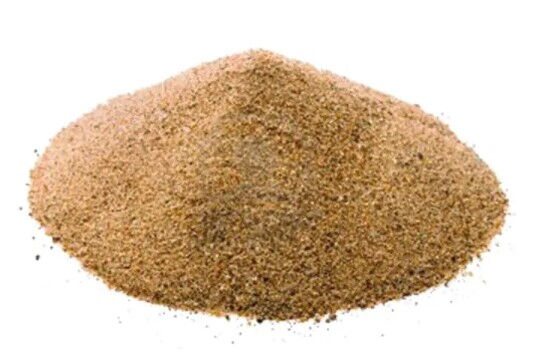

A quartz sand filter is a widely used mechanical filter with quartz sand as its core filtering material. Quartz sand is not ordinary river or sea sand; it is made from the crushing of extremely hard quartz stone. This filtering material has good wear resistance and chemical stability, effectively removing suspended solids and impurities from water.
Quartz sand filters are mainly divided into three types based on their materials: stainless steel, carbon steel, and fiberglass. Stainless steel quartz sand filters have good corrosion resistance and are suitable for various water quality environments. Carbon steel filters are less expensive but require anti-corrosion treatment. Fiberglass filters, on the other hand, are lightweight and high-strength, making them suitable for outdoor installation.
The working principle of quartz sand filters is relatively simple. Water enters the filter from the top and passes through the quartz sand filtering layer. Suspended solids are trapped by the quartz sand particles, thereby purifying the water. To ensure filtration effectiveness, the flow rate of quartz sand filters is generally controlled at 15m/h or less. However, shallow sand filters can achieve a flow rate of 40m/h, although their filtration effect is not as good as that of ordinary quartz sand filters.
The advantages of quartz sand filters lie in their simple structure and low operating costs. They do not require complex stirrers to regenerate fibers, so the manufacturing and operating costs are relatively low. However, the filtration accuracy of quartz sand filters is limited, usually between 20-50 microns, mainly targeting larger particle impurities. As the filtration time increases, the quartz sand layer is prone to compaction, leading to increased pressure drop and reduced efficiency. Regular backwashing is required to restore performance.
A fiber filter is a relatively new type of water treatment equipment with fiber balls or fiber bundles as its core filtering material. Fiber filters are divided into fiber ball filters and fiber bundle filters, with the main differences lying in the shape and installation method of the filtering material.

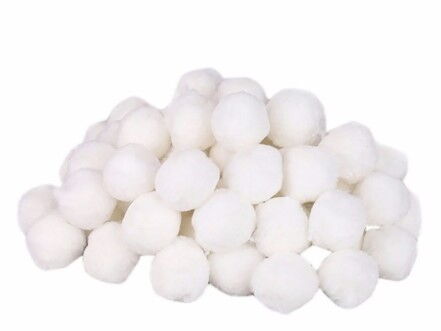

Fiber ball filters are equipped with fiber ball filtering material, and the filtration is achieved through the stirring of a motor. Fiber balls have a three-dimensional mesh structure that can capture tiny particles through physical adsorption and deep-bed filtration mechanisms. As water flows through, the fiber balls expand and contract under pressure, achieving efficient interception.
The flow rate of fiber ball filters can reach 60m/h, with a conventional design flow rate of 30m/h. They perform exceptionally well in handling micron-level impurities (such as oil or colloids) and are often used in fine filtration scenarios, such as the preparation of ultrapure water in the electronics industry.
Fiber bundle filters use linear fiber bundles, which are fixed to upper and lower perforated plates with stainless steel hooks. This design is relatively simple but less efficient in filtration compared to fiber ball filters.
The advantages of fiber filters lie in their high filtration accuracy, which can reach 1-5 microns, effectively removing oils, organic substances, and fine suspended solids from water. The regeneration performance of fiber balls is excellent, with a simple and efficient backwashing process that reduces downtime. However, the initial investment cost of fiber filters is high, and fiber balls are susceptible to chemical corrosion, which may shorten their lifespan in strongly acidic or alkaline environments.
After gaining a deep understanding of the characteristics of fiber filters and quartz sand filters, we will now conduct a comprehensive comparative analysis of these two types of filters. Through comparison, we can more clearly understand their performance in different aspects, thereby helping you choose the most suitable water treatment equipment according to your actual needs.
The filtration accuracy of quartz sand filters is usually between 20-50 microns. They mainly remove suspended solids and larger particle impurities from water through the physical trapping action of quartz sand particles. This type of filter is suitable for handling coarse suspended solids but has weak interception ability for tiny particles. For example, in municipal water treatment, quartz sand filters are often used in the pretreatment stage to remove coarse particles. In contrast, fiber filters can achieve a filtration accuracy of 1-5 microns, effectively removing oils, organic substances, and fine suspended solids from water. The three-dimensional mesh structure of fiber balls makes them stand out in handling micron-level impurities (such as oil or colloids). For instance, in the preparation of ultrapure water in the electronics industry, fiber ball filters can effectively remove tiny particles from water, ensuring high water purity.
The flow rate of quartz sand filters is generally controlled at 15m/h or less. Shallow sand filters can reach a flow rate of 40m/h, but their filtration effect is not as good as that of ordinary quartz sand filters. The low flow rate of quartz sand filters makes them suitable for scenarios with large treatment volumes but low precision requirements. On the other hand, fiber filters can achieve a flow rate of 60m/h, with a conventional design flow rate of 30m/h. The high flow rate of fiber ball filters gives them a significant advantage in handling high-flow water, effectively improving filtration efficiency.
The maintenance cost of quartz sand filters is relatively low. The quartz sand medium is inexpensive and readily available, but it needs to be replaced regularly (every 1-2 years). The backwashing process consumes a large amount of water, and the long-term operating cost may accumulate. The maintenance frequency is high, and the labor input is significant. In contrast, the initial investment cost of fiber filters is high, with the fiber ball medium being 2-3 times the price of quartz sand. However, fiber balls can be reused for 3-5 years, with simple maintenance and a longer lifespan. The backwashing process is highly automated, with less water consumption, significantly reducing operating costs.
Quartz sand filters are suitable for large coarse filtration systems, such as water treatment plants or cooling water cycles, where the treatment volume is large but the precision requirement is low. They are often used in the pretreatment stage of municipal water treatment to remove coarse particles. Fiber filters, on the other hand, are suitable for fine water treatment fields, such as the pharmaceutical or food and beverage industries, where water purity requirements are stringent. They perform excellently in the preparation of ultrapure water in the electronics industry, effectively removing tiny particles and oils.
When choosing a filter, it is necessary to consider multiple factors such as filtration accuracy, flow rate, maintenance cost, and application scenarios. Quartz sand filters are widely used in coarse filtration systems due to their simple structure and low operating costs, while fiber filters excel in fine filtration fields with their high accuracy, high flow rate, and efficient backwashing performance. If you need to handle micron-level impurities or have high water purity requirements, fiber filters are undoubtedly your best choice. If you need to handle large volumes of water with low precision requirements, quartz sand filters are an economical option.
Both quartz sand filters and fiber filters are important devices in the field of water treatment, each with its unique advantages and application scenarios. Quartz sand filters are widely used in coarse filtration systems due to their simple structure and low operating costs, while fiber ball filters excel in fine filtration fields with their high accuracy, high flow rate, and efficient backwashing performance. Choosing the right filter requires a comprehensive consideration of factors such as filtration accuracy, flow rate, maintenance cost, and application scenarios. We hope that the introduction in this article can help you better choose the suitable water treatment equipment and ensure the efficient and stable operation of your water treatment system.
In projects pursuing long-term return on investment (ROI), fiber ball filters often have an advantage. Although their initial investment cost is high, they are easy to maintain, have a longer lifespan, and their backwashing process is highly automated with less water consumption, significantly reducing operating costs. If you need to handle micron-level impurities or have high water purity requirements, fiber ball filters are undoubtedly your best choice.
