High Pressure Vessel
High Pressure Vessel
FAB is a Chinese pressure vessel manufacturer with technical sophistication. We pride ourselves on our U stamp/ASME high-quality pressure vessels adopted for pharmaceutical industry, food industry, refinery industry, etc.
- Fermentation tank: seed tank, yeast tank, circulation tank, crystallization tank, etc.
- Heat exchanger: industrial heat exchanger, air cooler, tube bundle, finned tube, etc.
- Storage tank: air storage tank, stainless steel tank, conveying tank, cement storage silo, surge tank, etc.
- Filter: dust filter, filter for water treatment, aviation fuel filter, fuel oil filter, coalescing filter, etc.
FAB's high pressure vessels can be customized according to your requirements.
Please contact us for detailed solutions!
FAB-240122-PV-01
We supply high-quality Carbon Steel Flash Vessels with ASME SA516 70 and ASME SA516M 70 Steel Plate construction. Our vessels also incorporate ASME SA20, ASME SA20M, and ASME SA105M Flanges, ensuring durability and reliability. The manufacturing process includes a precise Shell Rolling Procedure, delivering robust and dimensionally accurate products.
FAB-240122-PV-02
Our China-based factory specializes in producing secondary ammonia chillers, adhering to stringent standards such as ASTM A516 70. Custom dimensions are available to meet diverse project requirements. The chiller materials include ASTM A105 and AISI 4017, ensuring robust performance under challenging conditions with a maximum pressure rating of 27.5 MPa. Featuring an impressive heat exchange area of F=500 m², these chillers undergo Method B ammonia leakage testing for enhanced safety and reliability.
FAB-240122-PV-03
Our state-of-the-art facility in China proudly manufactures primary ammonia chillers, crafted to the highest standards. These chillers are constructed using ASTM A516 Grade 70 and AISI 4017 materials, ensuring exceptional durability and reliability. With dimensions of φ1200/1800*20*4500, these chillers boast a maximum pressure rating of 27.5 MPa, making them suitable for demanding applications. The heat exchange area stands at F=200 m², and the chiller tubes are made from Q345E for efficient heat transfer.
FAB-240122-PV-04
Our cutting-edge manufacturing facility produces high-quality waste heat recoverers designed for optimal performance. These recoverers are constructed with ASTM A387 Grade 12 material, ensuring durability and efficiency. The dimensions, including φ1400/1000*4800, make them suitable for various applications. The recoverer tubes, with dimensions Φ32*3, provide an impressive heat exchange area of F=370 m². Despite their robust capabilities, these units are relatively lightweight at 36.7 tons.

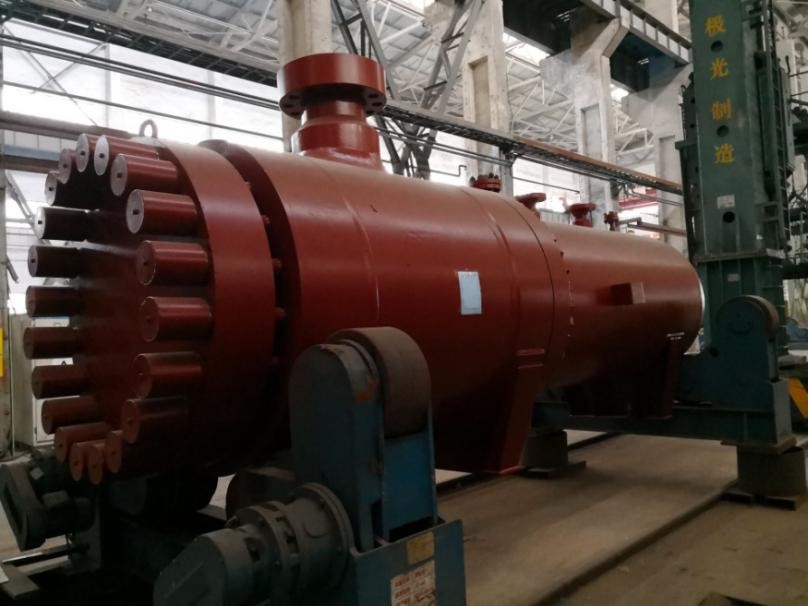

FAB-240122-PV-05
Our advanced manufacturing facility is your trusted source for high-quality feedwater preheaters. Crafted from top-tier materials, including ASTM A302 Grade B, ASTM A516 Grade 70, and ASTM A387 Grade 12, these preheaters ensure robust performance. With a substantial size of 48 inches (DN1200) and an impressive heat exchange area of F=200 m², they are designed for efficiency. Despite their large size and capabilities, these preheaters maintain a manageable weight of 32.12 tons.

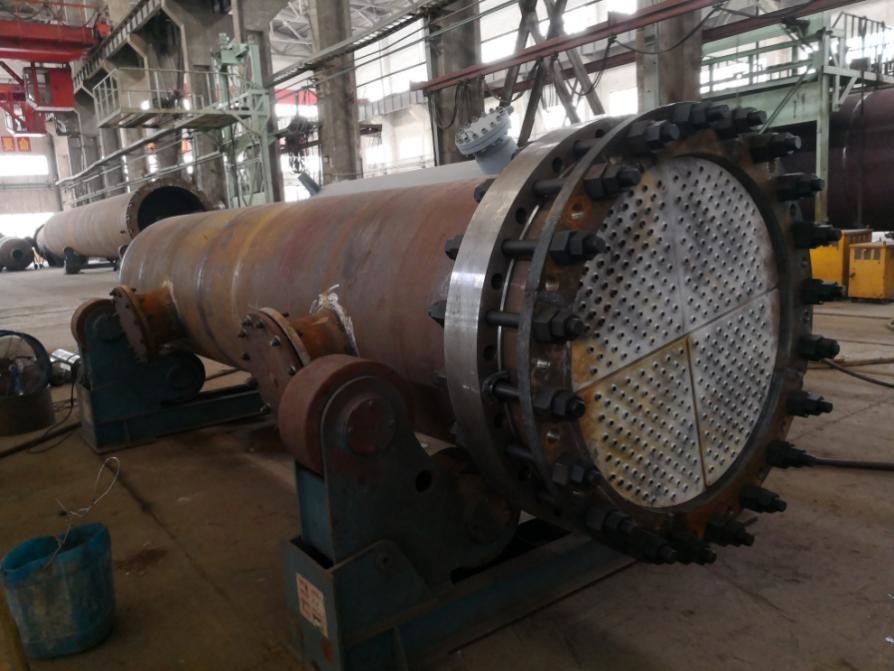

FAB-240122-PV-06
Elevate your industrial processes with our alcoholization water cooler. This cooling solution boasts top-notch materials, including ASTM A516 Grade 70, ASTM A179, and AISI 4017. The cooler's substantial heat exchange area of F=596 m² ensures efficient performance. Its dimensions, measuring φ1300*50*9690 mm, accommodate various applications, and despite its capabilities, it maintains a manageable weight of 30.5 tons. Trust our expertise to provide you with a reliable and efficient alcoholization water cooler for your industrial needs.

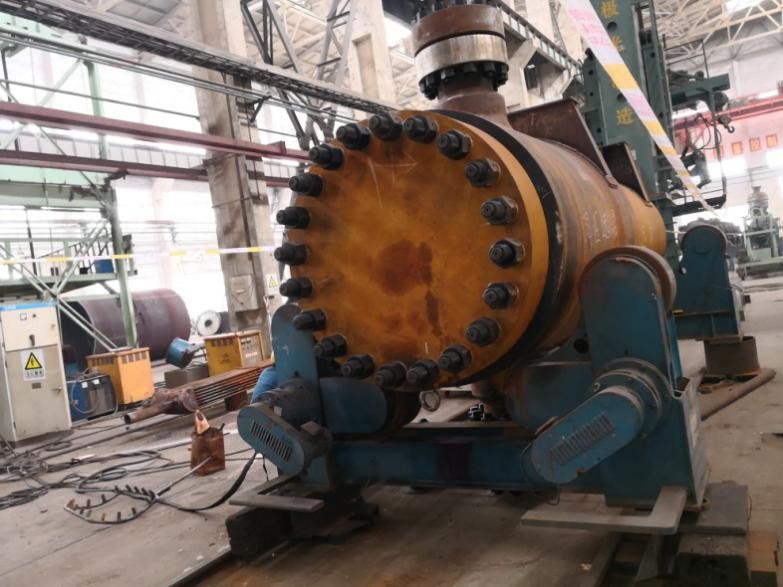

FAB-240122-PV-07
Upgrade your cooling systems with our top-notch Horizontal Water Cooler from China. Engineered with precision using Q345R and ASTM A179 materials, this cooler ensures both durability and efficiency. It undergoes rigorous testing, including a hydraulic test pressure of 34.8 MPa, ensuring reliability. Boasting an impressive heat exchange area (F=680 m²) and a dimension of φ15001304900, it delivers stellar performance while maintaining a manageable weight of 49.8 tons. Choose our Horizontal Water Cooler for quality and high-performance cooling solutions.
