In the extraction and processing of oil and gas, the three-phase separator plays a crucial role. It can effectively separate oil, gas, and water, ensuring the smooth operation of subsequent processing stages. However, to achieve efficient separation, the control of internal pressure within the three-phase separator is key. This article will delve into the basic principles of the three-phase separator, the importance of pressure, and how to optimize its performance through rational design and operation.

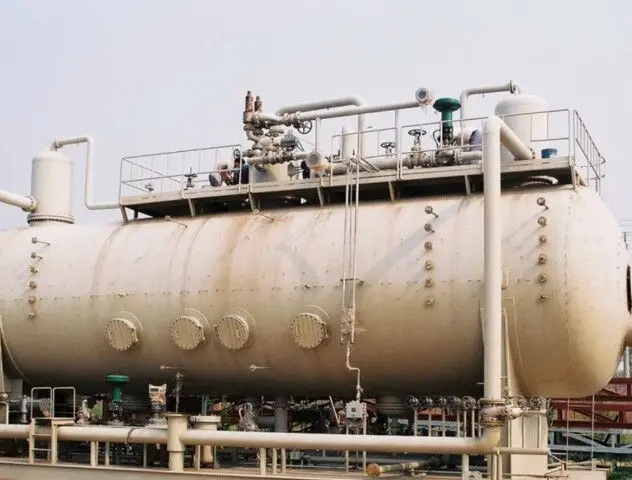

The three-phase separator is an efficient separation device, primarily designed to separate mixed oil, gas, and water. Its working principle is based on fluid mechanics and gravitational settling. When the mixed oil enters the separator through the inlet, the gas first passes through a primary mist eliminator for treatment. During this process, most of the liquid droplets are removed, and the gas becomes purer. Subsequently, the gas enters the gas pipeline, where it is further treated by a secondary mist eliminator to ensure that it contains almost no liquid droplets. Finally, the gas enters the gas-liquid separator for more refined separation.
Meanwhile, the degassed crude oil is directed through a downcomer onto a deflector plate. Here, gravitational settling is utilized to initiate the preliminary separation of crude oil and water. In the pre-separation chamber, once the crude oil reaches a certain height, it overflows through a distributor plate into the settling chamber. During this process, the crude oil and water pass through packing devices and coating devices, further promoting oil-water separation and forming a clear oil-water interface. By adjusting the water guide pipe, the oil-water interface can be stabilized, thereby achieving efficient oil-water separation.
The internal pressure of the three-phase separator is crucial for its normal operation and separation efficiency. According to theoretical calculations, when the gas pressure is maintained at 0.1 MPa, the liquid can reach a height of 10 meters. Therefore, maintaining a certain internal pressure is a necessary condition to ensure the normal functioning of the three-phase separator.
The internal pressure fluctuations in the three-phase separator are essentially the result of the interaction between the gas, liquid, and solid phases during the separation process. These pressure fluctuations not only reflect the fluid dynamics within the separator but also directly affect the separation efficiency and the stable operation of the system.
Enhancing Separation Efficiency: When pressure fluctuations are within a reasonable range, they help promote the thorough separation of the gas, liquid, and solid phases, reducing mutual entrainment and thus improving separation efficiency. Moderate pressure fluctuations can also enhance the system's self-cleaning ability, preventing the accumulation of solid particles inside the separator and reducing the risk of blockage.
Preventing Blockage: Reasonable pressure fluctuations can cause the sludge and particulate matter deposited at the bottom of the separator to become resuspended and carried away by the water flow, effectively preventing blockages within the internal pipes of the separator. Blockage is one of the main causes of UASB reactor failure, and by preventing blockages, the safety and reliability of the system can be significantly improved.
Avoiding Safety Risks: The presence of pressure fluctuations keeps the fluid within the separator in a certain turbulent state, which aids in the release of gases and the flow of liquids. This turbulent state prevents the accumulation of gases in localized areas, which could lead to gas locks and avoid safety accidents such as separator rupture or leakage due to excessive gas locks.
When the pressure in the three-phase separator falls below 0.15 MPa, a series of problems can occur, such as the inability of the separated oil to enter the stabilizing tower, the inability of the separated water to enter the natural settling tank, and even possible compressor shutdowns. In addition, the separation efficiency deteriorates, the oil-water interface becomes chaotic, and water carryover in oil can easily occur.
The main causes of low pressure in the three-phase separator are as follows:
Insufficient Liquid Flow from the Oil Production Area: If the liquid flow from the oil production area is insufficient, or the proportion of oil and gas is too low, it will result in the inability to maintain the internal pressure of the separator at a normal level.
Mechanical Failure: Mechanical failures usually manifest as gas leaks, which directly affect the internal pressure of the separator.
To address these issues, the following measures can be taken:
Adjust the Gas Outlet Valve: By adjusting the gas outlet valve, the pressure in the three-phase separator can be restored to a normal level, meeting the working pressure standards of the separator.
Monitor Data: In daily operations, it is essential to closely monitor relevant data, observing whether the liquid levels in the stabilizing tower and the natural settling tank are decreasing, and checking the oil-water interface in the separator. If the automatic gas release system fails, operators should take appropriate measures based on the specific situation. If the control valve is closed and the separator pressure exceeds 0.60 MPa but still cannot be opened, operators should promptly open the bypass of the control valve to maintain the pressure between 0.25 and 0.35 MPa.
When the pressure in the three-phase separator is too high, it also brings a series of problems. For example, insufficient gas pressure in the purification unit may be due to insufficient opening of the pressure-reducing regulator, blockage of the pressure-reducing regulator, or the presence of liquid accumulation or debris in the pipeline. The corresponding inspection points include the control handle of the pressure-reducing regulator and the section of the pipeline from the natural gas outlet to the pressure-reducing regulator.
Unstable high pressure in the purification unit may be due to a malfunction of the pressure-reducing regulator, with contaminants or damage on the sealing surface of the regulator valve core. The extinguishing of the pilot burner may be due to improper fuel quantity, improper air volume, clogged nozzles, or unstable combustion of the main burner. The inspection points are the valve opening, air door opening, nozzle contamination blockage, or burner dirtiness. Unstable combustion of the water jacket furnace burner may be due to improper air volume, either too high or too low, or improper adjustment of the air door. The solution is to adjust the size of the air door opening.
The differential pressure transmitter detecting the maximum or minimum signal may be due to leakage of the vent valve in the pressure lead line, the pressure lead valve not being opened, or leakage of the vent plug in the positive and negative pressure chambers of the instrument; blockage of the pressure lead line; or electrical failure of the instrument. The inspection points are the corresponding valves and pressure lead lines, the vent plugs of the positive and negative pressure chambers of the instrument, and the internal wiring of the instrument. The vortex flowmeter indication remains unchanged, which may be due to too small a drainage volume or pipeline blockage. The solution is to check the opening of the pneumatic valve and the pipeline, and remove internal impurities.
Severe pressure fluctuations in the separator may be due to blockage at the throttle valve or sudden removal of existing blockages. The aspects that need to be checked include whether the water temperature of the water jacket furnace is too low; whether there is a throttling phenomenon at the wellhead valve; and whether the operating pressure of the separator is too low, causing the differential pressure of the throttle valve to be too large.
To ensure the efficient operation and long-term stability of the three-phase separator, a series of optimization strategies need to be implemented.
By improving the structural design of the separator, the magnitude and distribution of pressure fluctuations can be effectively controlled. For example, increasing the height of the settling zone can reduce the retention time of sludge and decrease the accumulation rate of sludge at the bottom of the separator; while appropriately widening the reflux gap width helps the smooth discharge of gas and the uniform reflux of liquid.
Utilizing advanced sensor technology and intelligent control systems allows for real-time monitoring of the internal pressure changes in the separator and automatic adjustment based on preset safety thresholds. When pressure fluctuations exceed the normal range, the system can automatically take measures to adjust, such as increasing stirring intensity or adjusting the influent flow rate, to ensure that pressure fluctuations remain within a controllable range.
Regular maintenance and inspection of the three-phase separator can help identify and address potential safety hazards in a timely manner. For example, cleaning the accumulated sludge and debris inside the separator and checking the sealing performance of the pipelines can effectively reduce the impact of pressure fluctuations on system safety.
The three-phase separator plays a vital role in the processing of oil and gas. By properly controlling the internal pressure, separation efficiency can be significantly improved, ensuring the stable operation of the system. This article has provided a detailed introduction to the basic principles of the three-phase separator, the importance of pressure, and how to optimize its performance through improved structural design, the use of advanced sensor technology and intelligent control systems, regular maintenance and inspection, and troubleshooting common faults. It is hoped that this content will help relevant operators better understand and manage the three-phase separator to ensure its efficient and safe operation.
