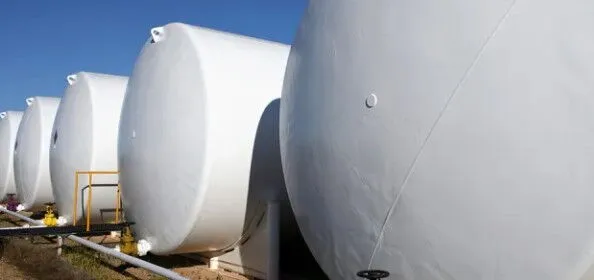

Crude oil storage tanks are vital components in the oil transportation and storage process, serving the crucial function of storing crude oil and ensuring a stable energy supply. However, due to the highly flammable and volatile nature of crude oil, fire and explosion risks are among the primary safety hazards during its storage. Therefore, understanding these risks of crude oil storage tanks and implementing effective control measures is essential to safeguarding personnel, protecting the environment, and ensuring the long-term integrity of storage facilities.
Crude oil, classified as a Class B flammable liquid, exhibits strong flammability, and its explosive limits are narrow with low values. As a result, crude oil storage tanks pose a considerable risk of fire and explosion if leaks, fires, or other hazards occur during storage or transportation. Depending on the composition of the crude oil and the conditions inside the storage tanks, several factors contribute to these risks.
At room temperature, crude oil can easily vaporize into gas, especially under high temperatures, low pressures, or external pressure on the container. When mixed with air, the vapors can form explosive mixtures. Under specific temperature and pressure conditions, these mixtures are highly susceptible to ignition by any fire source, leading to a fire or explosion. Particularly, after an oil leak, the concentration of oil vapors can exceed the lower explosive limit, posing a significant fire hazard.
Leakage is one of the main causes of fire and explosion accidents in crude oil storage tanks. Leaks typically arise from equipment failures, improper maintenance, corrosion, or human errors. Not only do oil leaks increase the risk of fire, but they also pose significant environmental risks, such as pollution. For instance, oil or gas leaks can ignite due to the low flash point of crude oil, and the high gas concentrations may fuel a fire. The extent of the leak directly impacts the speed at which a fire can spread and the potential for explosions. Leaks in areas with close tank spacing can cause fires to spread rapidly to surrounding facilities, leading to larger-scale disasters.
Over time, storage tank equipment can be damaged by metal fatigue, corrosion, wear, and other factors. Corrosion, particularly at the tank's bottom, is a leading cause of crude oil leaks. Severe corrosion can result in widespread oil leakage, which in turn increases the likelihood of fire and explosion incidents. Therefore, regular monitoring of corrosion is essential to prevent leaks and minimize fire risks.
During crude oil storage, transport, and transfer processes, electrostatic charges often accumulate, particularly in dry environments. If not controlled, these charges can discharge, acting as ignition sources and leading to fires or explosions. Static electricity is frequently overlooked, yet it poses a significant risk, especially when storage tanks are poorly sealed or improper operational practices are employed, exacerbating the problem.
To prevent fire and explosion accidents, it is important first to understand their mechanisms. A fire or explosion usually requires three key elements.
The primary condition for a fire or explosion is the presence of combustible materials. In crude oil storage tanks, the oil itself serves as the main combustible material. The hydrocarbons in crude oil are highly flammable, and the gases vaporized from the oil are equally combustible. In addition to crude oil, any flammable substances in the surrounding environment or equipment may act as potential fire hazards.
The second essential condition for a fire or explosion is the presence of air or oxygen. The concentration of oxygen is crucial to the occurrence of fire or explosion. Crude oil storage tanks undergo constant gas exchanges, and changes in temperature can affect the oxygen levels inside. When oil leaks from the tank, the evaporating oil gases mix with air, and at the right concentration of oxygen, an explosion is highly probable.
An ignition source is the direct cause of fire or explosion. Ignition can come from several sources, including equipment malfunctions, electrical short circuits, or electrostatic discharges. Improper operations or the aging of equipment can also create potential ignition sources. Once the three conditions, combustible materials, oxygen, and an ignition source, are met, a fire or explosion will inevitably occur. Thus, controlling these risks requires focusing on all three elements to mitigate the chances of accidents.
To effectively prevent and respond to fire and explosion incidents in crude oil storage tanks, several preventive control measures should be implemented.
Since crude oil leakage is one of the direct causes of fire and explosion, preventing leaks is critical for fire safety. The following measures can help minimize leakage risks:
Regular inspection of storage tanks, pipelines, valves, and other related facilities is essential for detecting leaks early and repairing them before they escalate. Special attention should be paid to tank bottoms and welded joints. Advanced inspection techniques, such as ultrasonic and eddy current testing, can be used to assess the sealing integrity of equipment and identify aging or damaged components that need to be replaced.
Installing automated leak detection systems can provide real-time monitoring of oil leakage from tanks and pipelines. When a leak is detected, the system immediately sends an alert to the relevant personnel, enabling quick action to contain the leak before it leads to a fire or explosion.
Optimizing tank design to minimize potential hazards is a key preventive strategy. For example, the use of double-walled tanks, firewalls, and other safety features can reduce the risk of accidents. Ensuring that tanks have adequate sealing capabilities is essential to prevent the evaporation of oil vapors.
Corrosion is a major cause of oil leaks and must be controlled through effective measures:
To prevent corrosion, both the internal and external surfaces of storage tanks should be coated with specialized anti-corrosion materials. Particular attention should be given to areas that are prone to water contact, such as the bottom of the tank.
Cathodic protection is a method used to protect metal surfaces from corrosion by applying a sacrificial anode to neutralize corrosion currents. This technique is highly effective in preventing the corrosion of the tank bottom and extending the service life of the storage tanks.
Regular monitoring of corrosion, particularly in high-risk areas such as tank bottoms and internal walls, is essential to detecting early signs of degradation. Timely maintenance can prevent leaks and mitigate the risk of fire and explosion.
Preventing electrostatic accumulation and reducing the risk of fire and explosions requires several control measures:
All tanks and surrounding facilities must be equipped with effective grounding systems to discharge static electricity safely. The grounding of the tank's top and floating roof must maintain good contact to ensure the timely release of accumulated static charges.
All electrical equipment in the storage tank area must meet explosion-proof standards to avoid triggering a fire due to electrical malfunctions. Regular inspections and maintenance of electrical systems are crucial to prevent potential ignition sources.
A comprehensive fire alarm system, including smoke and temperature detectors, should be installed in the tank area. The system should promptly detect any fire sources and trigger alarms to initiate emergency firefighting procedures.
In areas prone to frequent thunderstorms, lightning protection systems are essential to safeguard tanks from lightning strikes, which could cause fires or explosions. Installing lightning rods and ensuring proper grounding systems will help redirect lightning currents safely into the ground.
The safety management of storage tanks and the adherence to strict operational standards are crucial for preventing accidents:
All personnel must undergo rigorous safety training to ensure they are familiar with proper operational procedures. During operations, open flames, smoking, and other fire risks should be strictly prohibited in the tank area. Implementing safety protocols and emergency response drills helps minimize human error and operational risks.
An effective emergency response plan must be in place in case of a fire or explosion. Personnel should be trained to evacuate swiftly and activate fire suppression systems as soon as an incident occurs.
Regular emergency drills for fire and explosion scenarios are crucial to prepare staff for quick and effective responses. These drills help to familiarize personnel with emergency procedures and improve their reaction time during a real incident.
Crude oil storage tanks play a vital role in the transportation and storage of crude oil, ensuring a continuous energy supply. However, due to the highly flammable and explosive nature of crude oil, the risk of fire and explosion cannot be overlooked. To ensure the safe operation of crude oil storage tanks, preventive measures must focus on leak prevention, corrosion control, electrostatic discharge mitigation, and the use of fire prevention systems. Moreover, tank design and safety management practices should be optimized to reduce risks. Through comprehensive management and scientific control measures, it is possible to significantly reduce the occurrence of fire and explosion accidents, thereby safeguarding personnel, the environment, and the long-term operation of storage facilities.
